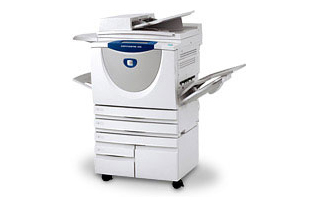

Xerox WorkCentre® 232/238 Black and White Multifunction Device
Quick Facts
- Print, Copy with optional Fax and email
- up to 32 / 38 ppm
- First page out time as fast as 4.5 seconds
- 1.4 GHz processor
- 80 GB hard drive
- Maximum paper size: A3
- 75-sheet Duplexing Automatic Document Feeder
- Scan speed: up to 38 ppm
- Standard paper capacity: 1,200 sheets
- Maximum paper capacity: 4,800 sheets
- Stapling, hole punching, V-folding and saddle-stitch finishing options
- Optional Scan-to-email with LDAP and authentication
|
 |
- One-line or two-line fax option with LAN fax
- Maximum duty cycle up to 150,000 pages per month
- Power requirements: 220-240 Volt Nominal, 50 Hz, 10A
|
 View Brochure
|
Contract/Warranty
|
 Compare Models
|
|
|
| |
|
|
|
|
|
|
| |
| |
|
|
|
|
| |
|
|
| Scan to Email, Fax (Single or dual telephone line), LAN Fax |
|
|
| |
|
|
|
|
|
|
| |
|
|
|
|
|
|
| |
|
|
|
|
| |
|
|
Optional 75-sheet Duplex Automatic Document Handler (DADH)
Up to 38 ipm (images per minute) |
|
|
| |
|
|
|
|
| |
|
|
|
|
| |
|
| |
|
|
| 600 x 600 x 8 dpi input / 600 x 4800 dpi interpolated output |
|
|
| |
|
|
Automatic 2-sided
Auto reduction and enlargement
Auto paper select
Auto tray switching
Image quality enhancements
Transparencies
Booklet creation
Multi-up
Covers
Annotation
Build job
Inserts and tab copying
Sample set
Heavy-weight paper |
|
|
| |
|
|
|
|
| |
|
| |
|
|
1.4GHz AMD Athlon dedicated
80 GB Hard Drive shared |
|
|
| |
|
|
Ethernet 10/100 BaseT
IEEE802.5 (Token ring) [via adapter]
wireless ethernet (IEEE802.11a/b/g) [via third party adapter] |
|
|
| |
|
|
PCL6, PCL5e
PostScript 3 emulation with direct print TIFF, PDF (optional)
LCDS, SCS, XES and IPDS via third party transforms |
|
|
| |
|
|
|
|
| |
|
|
| Delay-, sample-, secure-, and store-print; simultaneous rip, receive, programme-ahead, queue-process and transmit; bi-directional print drivers; page-level programming; tab printing; embedded web server for remote control/monitor/setup; job monitoring at device and at desktop |
|
|
| |
|
| |
|
|
| Walkup Fax (one-line and two-line options) with LAN Fax |
|
|
| |
|
|
32 MB (One Line)
256 MB (Two Line) |
|
|
| |
|
| |
|
|
100-sheet Bypass Tray
Two 550-sheet user-adjustable front loading Paper Trays
Optional 3,600-sheet High Capacity Paper Trays (1,600- and 2,000-sheet drawers)
Total up to 4,800 sheets |
|
|
| |
|
|
Two Front Loading Paper Trays: User adjustable from A5/148 x 210 mm to A3/297 x 420 mm
Bypass Tray: User Adjustable from 105 x 148 mm to A3/297 x 420 mm |
|
|
| |
|
|
Two Front Loading Paper Trays: 60 to 200 gsm
Bypass Tray: 60 to 216 gsm |
|
|
| |
|
|
Simple Office Finisher: 30-sheet, single-position stapling, 1,000 + 250-sheet trays
Office Finisher: 50-sheet, multi-position stapling, 2,000 + 250-sheet trays
Professional Finisher: 50-sheet, multi-position stapling, 1,500 + 250-sheet trays, 2-hole punch (4-hole option), saddle-stitch booklet making, v-folding
Offset Catch Tray: 300 sheets
Convenience Stapler: 50-sheet |
|
|
| |
|
| |
|
|
Tracking
- Copy usage
Accounting
- Up to 2,150 User accounts
- Up to 5,925 General accounts
- Up to 256 Group accounts
Features
- Auditron report printout, ability to upload/download account and usage data via USB connection using Microsoft Windows based software |
|
|
| |
| Xerox Standard Accounting |
|
|
Tracking
- Copy, Print, Fax and Scan usage
Accounting
- Up to 2,500 User accounts (User Id)
- Up to 500 General accounts (Client)
- Up to 500 Group accounts (Department)
Features
Enable/disable via the web UI or the GUI in tools, admin can manage the feature remotely via the web UI, Data can be exported via a CSV file, user required to enter XSA ID into the print driver when submitting a print job, similar to secure print. |
|
|
| |
|
|
802.1x*, HTTPS (SSL), SNMP V3, IPSec, Network Authentication, Device Access Password Protection, IP Filtering, Audit Log, Disk Encryption – for Store Print and Scan to Mailbox features*, Secure Print, Fax Security
Optional: Disk Image Overwrite, Xerox Secure Access Unified ID System™
*Feature is not included with the Common Criteria Security Option. |
|
|
| |
|
|
Secure device login with network user name and password
Supports Kerberos (Windows 2000/UNIX/Windows Server 2003)
SMB (Windows NT 4.0/Windows 2000/Windows Server 2003)
Novell over IP/IPX (Novell NetWare 4.x/5.x/6.x)
PIN-based guest login |
|
|
| |
|
| |
|
|
Hole punching (with Office Finisher)
256 MB Pre-Collation Memory
Foreign Interface Device
Xerox Copier Assistant™
Postscript 3 Emulation / MAC Ethertalk
WorkCentre Pro Upgrade Kit |
|
|
| |
|
| |
|
|
With Offset Catch Tray:
Width: 1,240 mm
Depth: 830 mm
Height*: 1,460 mm
Weight: 126 kg
With Office Finisher:
Width: 1,499 mm
Depth: 830 mm
Height*: 1,460 mm
Weight: 154 kg
* Height with DADH raised. |
|
|
| |
|
| |
|
|
220-240 Volt Nominal, 50 Hz, 10A
Note: Convenience Stapler requires separate 220V 1.2A circuit |
|
|
| |
