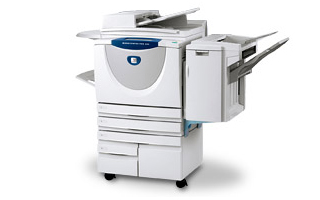

Xerox WorkCentre® Pro 232/238 Black and White Advanced Multifunction Device
Quick Facts
- Print, Copy, Scan and email, with optional Fax
- up to 32 / 38 ppm
- First page out time as fast as 4.5 seconds
- 1.4 GHz processor
- 80 GB hard drive
- Maximum paper size: A3
- 75-sheet Duplexing Automatic Document Feeder
- Scan speed: up to 38 ppm
- Standard paper capacity: 1,200 sheets
- Maximum paper capacity: 4,800 sheets
- Stapling, hole punching, V-folding and saddle-stitch finishing options
- One-line or two-line fax option with LAN fax; Network server/internet fax also available
|
 |
- Optional Xerox SMARTsend™ and Scan to PC Desktop™ software
- Maximum duty cycle up to 150,000 pages per month
- Power requirements: 220-240 Volt Nominal, 50 Hz, 10A
|
 View Brochure
|
 Contract/Warranty
|
 Compare Models
|
|
|
| |
|
|
|
|
|
|
| |
| |
|
|
|
|
| |
|
|
| Fax (Single or dual telephone line), LAN Fax, Internet Fax, Network Server Fax Enablement, Job Based Accounting - 3rd Party Enablement |
|
|
| |
|
|
|
|
|
|
| |
|
|
|
|
|
|
| |
|
|
|
|
| |
|
|
75-sheet Duplex Automatic Document Handler (DADH)
Up to 38 ipm (images per minute) |
|
|
| |
|
|
|
|
| |
|
|
|
|
| |
|
|
| WorkCentre Pro 232/238 Detailed Specifications |
|
|
| |
|
| |
|
|
| 600 x 600 x 8 dpi input / 600 x 4800 dpi interpolated output |
|
|
| |
|
|
Automatic 2-sided
Auto reduction and enlargement
Auto paper select
Auto tray switching
Image quality enhancements
Transparencies
Booklet creation
Multi-up
Covers
Annotation
Build job
Inserts and tab copying
Sample set
Heavy-weight paper |
|
|
| |
|
|
|
|
| |
|
| |
|
|
1.4GHz AMD Athlon dedicated
80 GB Hard Drive shared |
|
|
| |
|
|
Ethernet 10/100 BaseT
IEEE802.5 (Token ring) [via adapter]
wireless ethernet (IEEE802.11a/b/g) [via third party adapter] |
|
|
| |
|
|
PCL6, PCL5e
PostScript 3 emulation, direct print TIFF, PDF
LCDS, SCS, XES and IPDS via third party transforms |
|
|
| |
|
|
| Up to 1200 x 1200 interpolated dpi |
|
|
| |
|
|
| Delay-, sample-, secure-, and store-print; simultaneous rip, receive, programme-ahead, queue-process and transmit; bi-directional print drivers; page-level programming; tab printing; embedded web server for remote control/monitor/setup; job monitoring at device and at desktop |
|
|
| |
|
| |
|
|
Scan to email
Enables device-specific network scan workflows (destination templates) to be easily created and edited via CentreWare Internet Services
Scan to Home displays one template and populates with the user’s directory path after authentication*
Scan to file
Scan to network server / directory
Scan to Mailbox*
Scan to Windows XP client via Windows Image Acquisition (WIA) or TWAIN driver downloadable from www.xerox.com
*Feature is not included with the Common Criteria Security Option. |
|
|
| |
|
|
| Scan to PC Desktop (SE and Professional editions), SMARTsend, SMARTsend Professional |
|
|
| |
|
| |
|
|
| Walkup Fax (one-line and two-line options) with LAN Fax, Internet Fax, Network Server Fax Enablement |
|
|
| |
|
|
32 MB (One Line)
256 MB (Two Line) |
|
|
| |
|
| |
|
|
100-sheet Bypass Tray
Two 550-sheet user-adjustable front loading Paper Trays
Optional 3,600-sheet High Capacity Paper Trays (1,600- and 2,000-sheet drawers)
Total up to 4,800 sheets |
|
|
| |
|
|
Two Front Loading Paper Trays: User adjustable from A5/148 x 210 mm to A3/297 x 420 mm
Bypass Tray: User Adjustable from 105 x 148 mm to A3/297 x 420 mm |
|
|
| |
|
|
Two Front Loading Paper Trays: 60 to 200 gsm
Bypass Tray: 60 to 216 gsm |
|
|
| |
|
|
Simple Office Finisher: 30-sheet, single-position stapling, 1,000 + 250-sheet trays
Office Finisher: 50-sheet, multi-position stapling, 2,000 + 250-sheet trays
Professional Finisher: 50-sheet, multi-position stapling, 1,500 + 250-sheet trays, 2-hole punch (4-hole option), saddle-stitch booklet making, v-folding
Offset Catch Tray: 300 sheets
Convenience Stapler: 50-sheet |
|
|
| |
|
| |
|
|
Tracking
- Copy usage
Accounting
- Up to 2,150 User accounts
- Up to 5,925 General accounts
- Up to 256 Group accounts
Features
- Auditron report printout, ability to upload/download account and usage data via USB connection using Microsoft Windows based software |
|
|
| |
| Xerox Standard Accounting |
|
|
Tracking
- Copy, Print, Fax and Scan usage
Accounting
- Up to 2,500 User accounts (User Id)
- Up to 500 General accounts (Client)
- Up to 500 Group accounts (Department)
Features
Enable/disable via the web UI or the GUI in tools, admin can manage the feature remotely via the web UI, Data can be exported via a CSV file, user required to enter XSA ID into the print driver when submitting a print job, similar to secure print. |
|
|
| |
| Job Based Accounting - 3rd Party Enablement |
|
|
- Enhanced network accounting with up to the minute data on how the WorkCentre Pro system is being used; comprehensive management and enterprise scale tracking and reporting of device usage of copy, print, scan and server fax.
- Security enhancements with the addition of HTTPS protocol support.
- WorkCentre Pro requests account authentication from third party server enabling larger databases of users and accounts.
Various options available through Xerox Alliance Partner Programme. |
|
|
| |
|
|
802.1x*, HTTPS (SSL), SNMP V3, IPSec, Network Authentication, Device Access Password Protection, IP Filtering, Audit Log, Disk Encryption – for Store Print and Scan to Mailbox features*, Secure Print, Fax Security
Optional: Disk Image Overwrite, Xerox Secure Access Unified ID System™
*Feature is not included with the Common Criteria Security Option. |
|
|
| |
|
|
Secure device login with network user name and password
Supports Kerberos (Windows 2000/UNIX/Windows Server 2003)
SMB (Windows NT 4.0/Windows 2000/Windows Server 2003)
Novell over IP/IPX (Novell NetWare 4.x/5.x/6.x)
PIN-based guest login |
|
|
| |
|
| |
|
|
Hole punching (with Office Finisher)
256 MB Pre-Collation Memory
Foreign Interface Device
Xerox Copier Assistant™
USB 2.0 (IEEE1284) / Parallel Port kit
Fax / Scan / Accounting Partner Solutions |
|
|
| |
|
| |
|
|
With Offset Catch Tray:
Width: 1,240 mm
Depth: 830 mm
Height*: 1,460 mm
Weight: 126 kg
With Office Finisher:
Width: 1,499 mm
Depth: 830 mm
Height*: 1,460 mm
Weight: 154 kg
* Height with DADH raised. |
|
|
| |
|
| |
|
|
220-240 Volt Nominal, 50 Hz, 10A
Note: Convenience Stapler requires separate 220V 1.2A circuit |
|
|
| |
